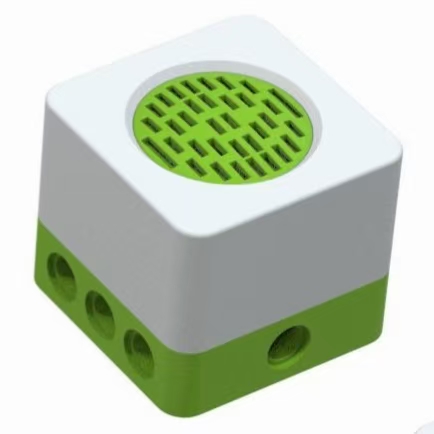

Sound Sensor
Introduction
The sound sensor measures changes in sound intensity in the surrounding environment, with a detection range of 0~255.
By converting sound waves into electrical signals using a microphone, the sensor amplifies and filters the signal to reflect sound intensity, enabling dynamic sound environment detection.

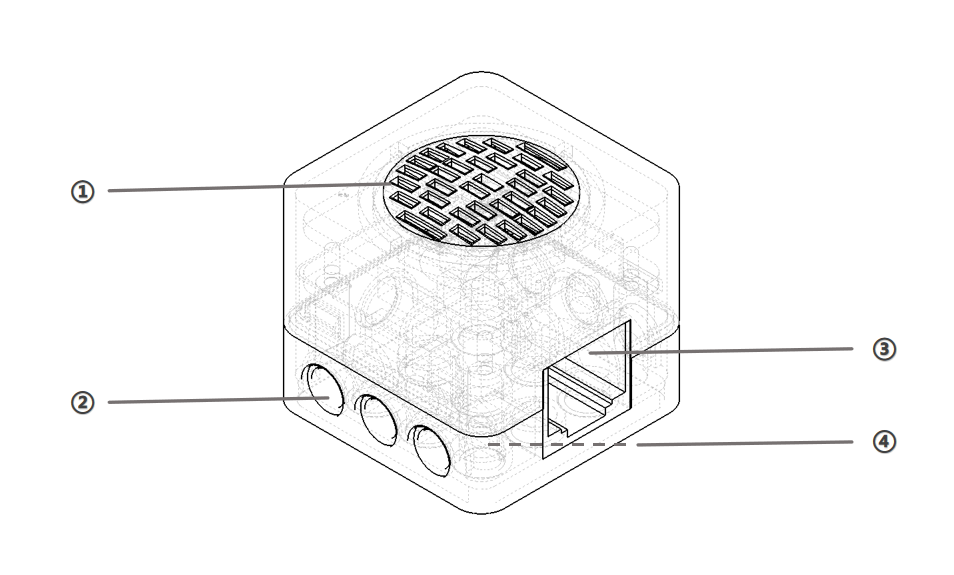

Structure
No. |
Name |
Description |
|---|---|---|
① |
Sound Sensor Mark |
Green grid structure for module identification |
② |
Pinhole |
Connects and secures building blocks via pinholes |
③ |
RJ11 Port |
Applicable to the crystal head connecting cable |
④ |
Groove |
Connects and secures building blocks via grooves |
Specifications
Item |
Description |
|---|---|
Name |
ICBricks Sound Sensor |
Code |
B0100007 |
Dimensions |
31.8x31.8x28 mm |
Weight |
13 g |
Material |
ABS |
Operating Voltage |
3.3 V |
Operating Voltage |
RJ11 Port |
Communication |
I2C |
Detection Data |
0~255 |
Usage Instructions
Type |
Description |
|---|---|
Application Modes |
Logic control mode, programming control mode. |
Connection Method |
Establish a connection with the hub through the Crystal Head Connector. |
Status Detection |
Detects sound intensity in the surrounding environment to adjust the corresponding actuator or character accordingly. |
