Gyroscope Sensor
Introduction
The gyroscope sensor can detect its own tilt state (forward tilt, backward tilt, left tilt, right tilt, and horizontal), with a detection range of -90° to 90° for each axis. By measuring angular velocity and acceleration along three axes, the gyroscope sensor identifies motion states and attitude changes.

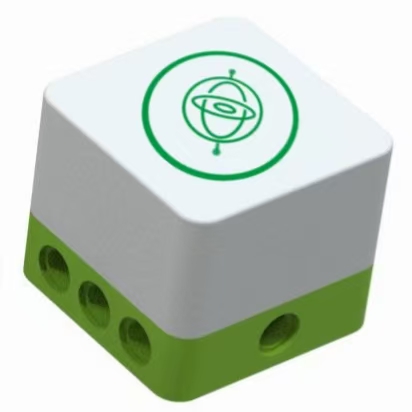

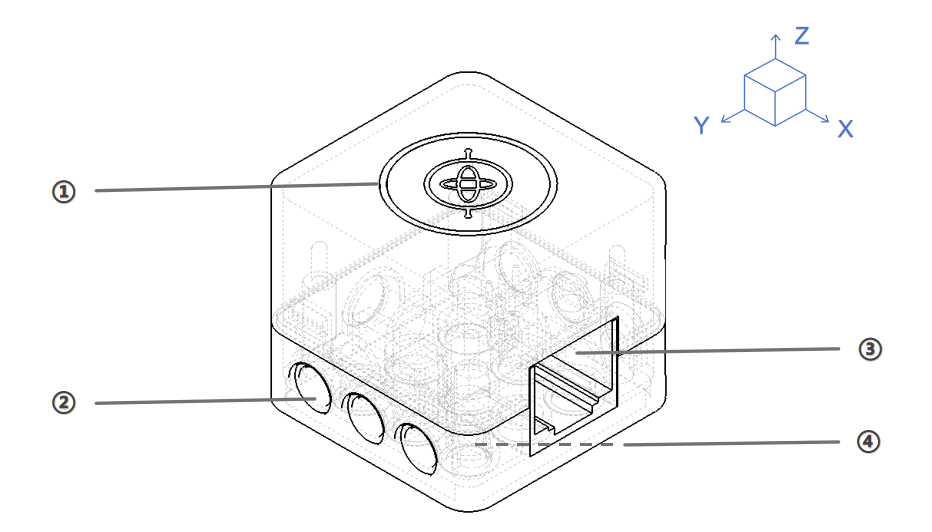

Structure
No. |
Name |
Description |
|---|---|---|
① |
Icon |
Green imprint for module type identification |
② |
Pinhole |
Connects and secures building blocks via pinholes |
③ |
RJ11 Port |
Applicable to the crystal head connecting cable |
④ |
Groove |
Connects and secures building blocks via grooves |
Specifications
Item |
Description |
|---|---|
Name |
ICBricks Gyroscope Sensor |
Code |
B0100005 |
Dimensions |
31.8x31.8x28 mm |
Weight |
11 g |
Material |
ABS |
Operating Voltage |
3.3 V |
Connection/Transfer |
RJ11 Port |
Communication |
I2C |
Detection Data |
-90~0~90 |
Usage Instructions
Type |
Description |
|---|---|
Application Modes |
Logic control mode, programming control mode. |
Connection Method |
Establish a connection with the hub through the Crystal Head Connector. |
Status Detection |
Detects tilt direction and angle based on the X or Y axis and adjusts the corresponding actuator or character accordingly. |
