Encoder Sensor
Introduction
The encoder sensor features multifunctional detection capabilities, identifying forward rotation, reverse rotation, and press operations.
By capturing rotational angles and directional changes, it provides real-time feedback on rotational amplitude and position. The press function adds more interaction options for users.

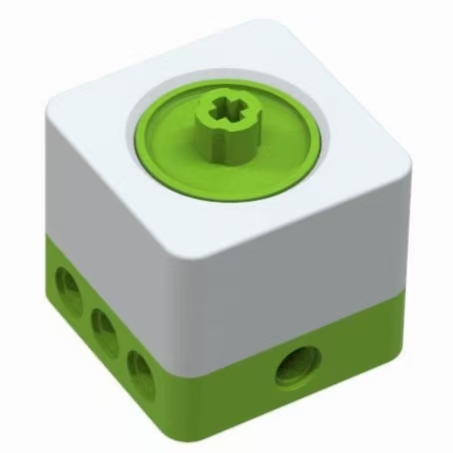

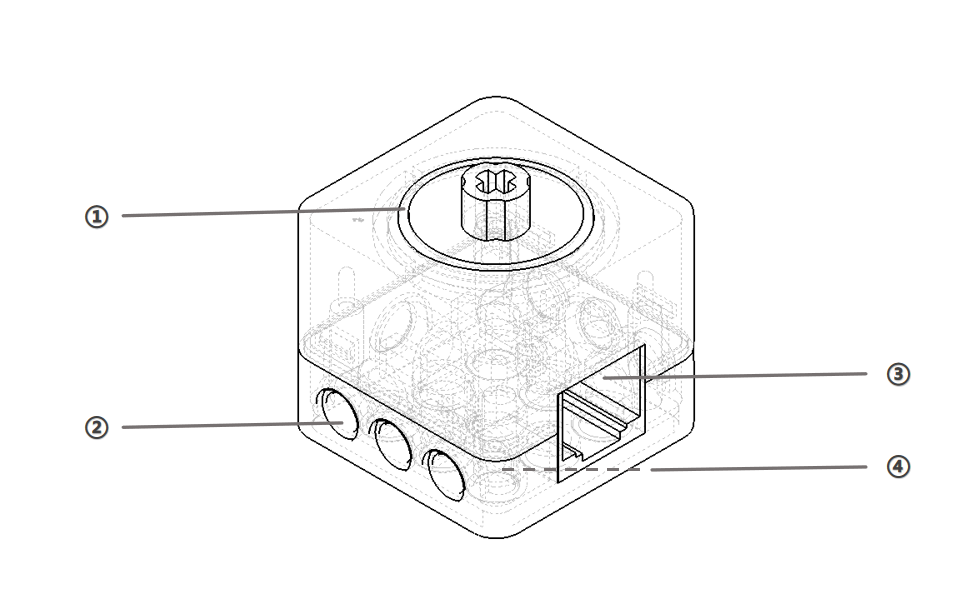

Structure
No. |
Name |
Description |
|---|---|---|
① |
Icon |
Green imprint for module type identification; supports press and rotation operations |
② |
Pinhole |
Connects and secures building blocks via pinholes |
③ |
RJ11 Port |
Applicable to the crystal head connecting cable |
④ |
Groove |
Connects and secures building blocks via grooves |
Specifications
Item |
Description |
|---|---|
Name |
ICBricks Encoder Sensor |
Code |
B0100003 |
Dimensions |
31.8x31.8x28 mm |
Weight |
12 g |
Material |
ABS |
Operating Voltage |
3.3 V |
Operating Voltage |
RJ11 Port |
Communication |
I2C |
Detection Data |
0~255 |
Usage Instructions
Type |
Description |
|---|---|
Application Modes |
Logic control mode, programming control mode. |
Connection Method |
Establish a connection with the hub through the Crystal Head Connector. |
Status Detection |
Detects forward rotation, reverse rotation, and press states to adjust the corresponding actuator or character accordingly. |
