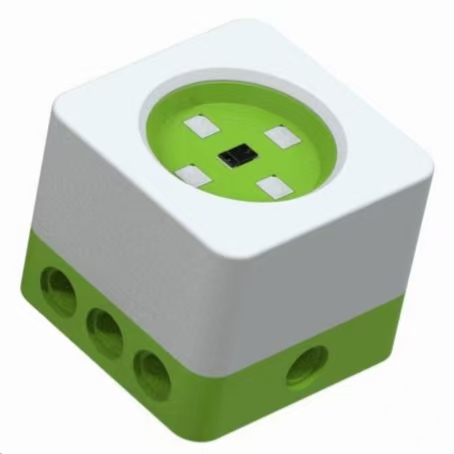

Distance Sensor

Introduction

The distance sensor detects the distance between objects and the sensor, with a detection range of 0~255 cm.

Using laser reflection principles, the sensor measures the round-trip time of laser signals to calculate the absolute distance between the sensor and the target. The sensor emits laser at a wavelength of 940 nm and completes distance measurements up to 2 meters in under 30 ms.

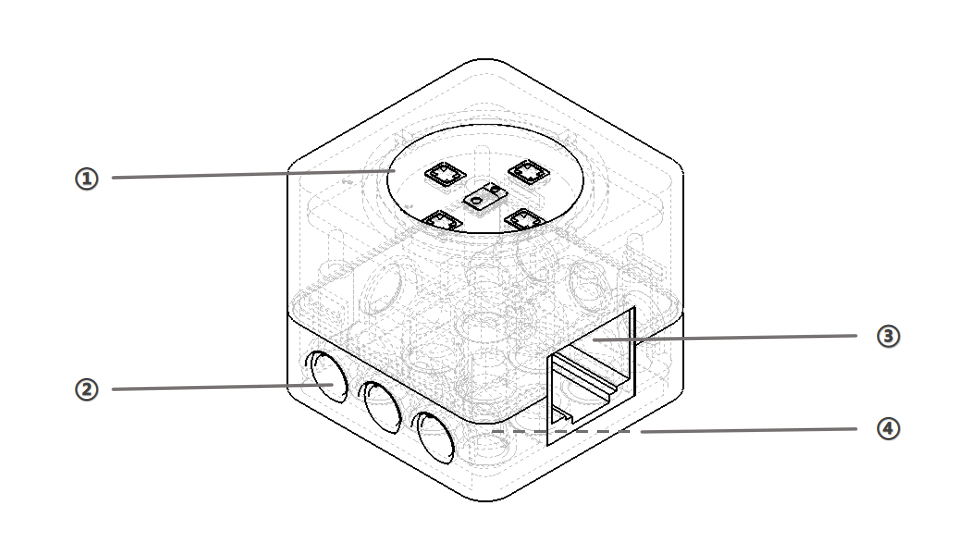

Structure

No.	Name	Description
①	Icon	Green imprint for module type identification
②	Pinhole	Connects and secures building blocks via pinholes
③	RJ11 Port	Applicable to the crystal head connecting cable
④	Groove	Connects and secures building blocks via grooves

Specifications

Item	Description
Name	B0100004
Code	ICBricks Distance Sensor
Dimensions	31.8x31.8x28 mm
Weight	15 g
Material	ABS
Operating Voltage	3.3 V
Operating Voltage	RJ11 Port
Communication	I²C
Detection Data	0~255

Usage Instructions

Type	Description
Application Modes	Logic control mode, programming control mode.
Connection Method	Establish a connection with the hub through the Crystal Head Connector.
Status Detection	Detects the distance between objects and the sensor to adjust the corresponding actuator or character accordingly.
