Interface Guide

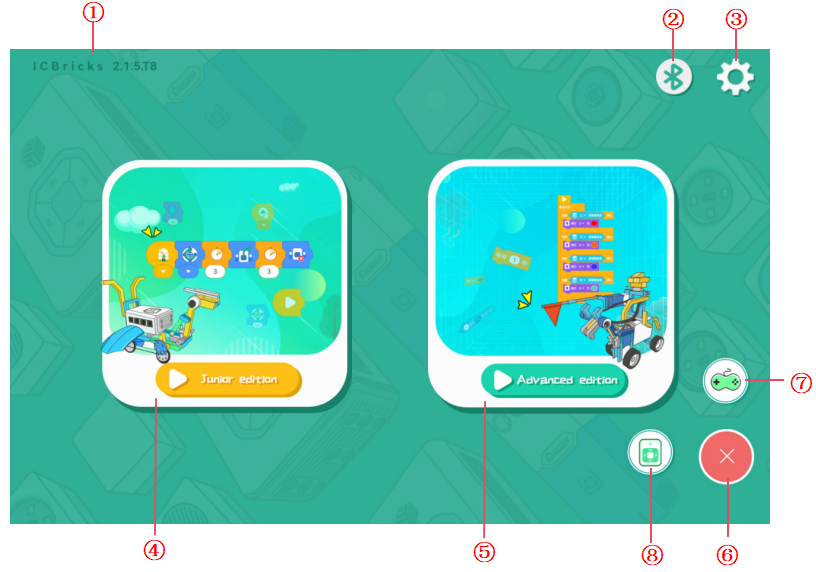

Login Interface

No.	Name	Description
①	Version Info	View the current software version.
②	Bluetooth	Tap to open the Bluetooth connection window and pair with a target device.
③	Settings	Tap to configure software language and other options.
④	Junior Version	Tap to select a project and enter the basic programming interface.
⑤	Advanced Version	Tap to select a project and enter the advanced programming interface.
⑥	Floating Ball	Tap to expand the remote and console buttons; tap again to collapse it.
⑦	Remote Control	Tap to enter the remote control interface for robot operations.
⑧	Console	Tap to access the console interface to view external device statuses.

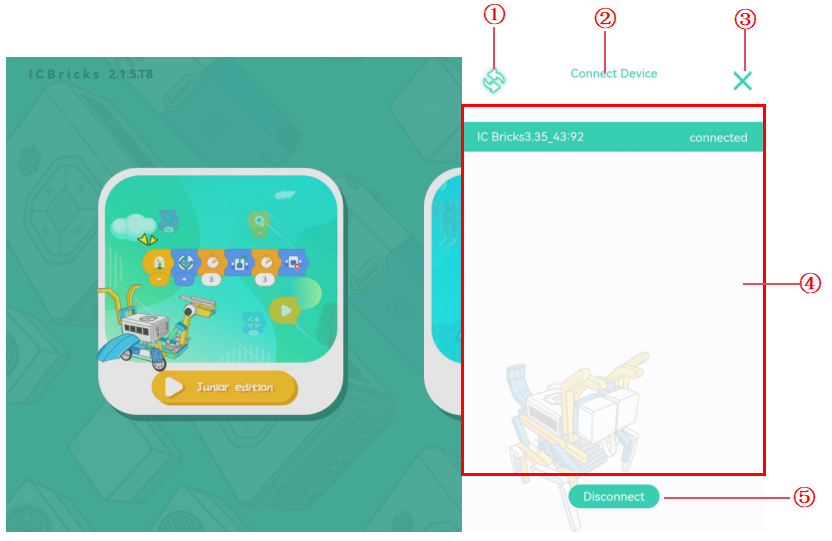

No.	Name	Description
①	Refresh Devices	Rescan for nearby ICBricks devices and update the device list.
②	Hidden Function (Bluetooth Rename)	Tap the text 10 times to enter the renaming interface for Bluetooth devices.
③	Close Window	Close the Bluetooth window.
④	Device List	Display all scanned devices. Tap a device name to pair; connected devices are highlighted in green.
⑤	Disconnect	End the Bluetooth connection with the current device.

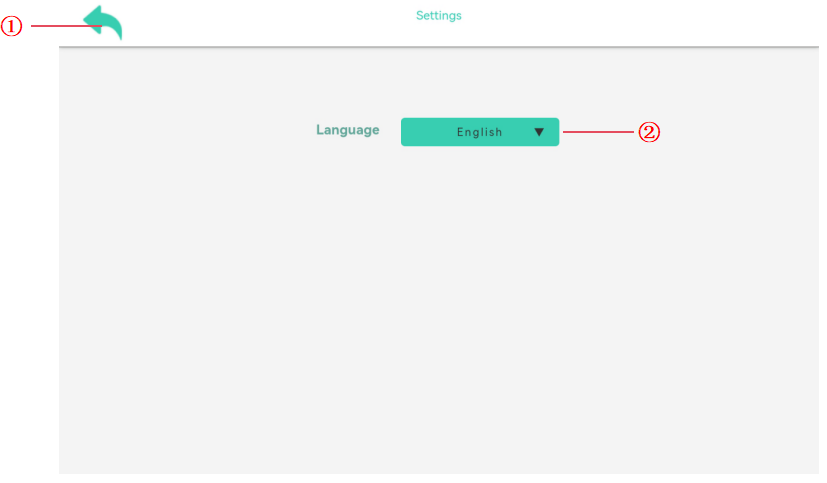

No.	Name	Description
①	Back	Return to the login interface.
②	Language	Change the software language.

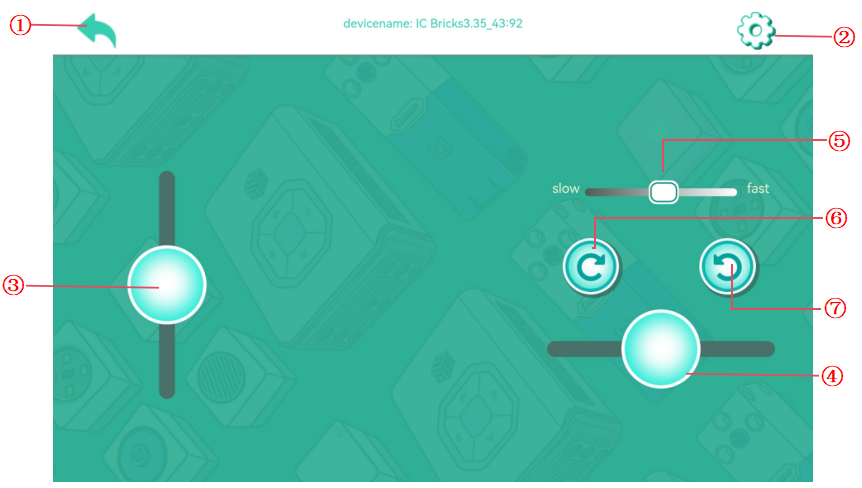

No.	Name	Description
①	Back	Return to the login interface.
②	Settings	Adjust port settings for custom remote control configurations.
③	Forward/Reverse Slider	Drag the slider to control the robot to move forward or back. The larger the slider drags, the faster the robot is.
④	Left/Right Slider	Drag the slider to control the robot to turn left or right. The larger the slider drags, the faster the steering speed.
⑤	Speed Settings	Adjust motor speeds for specific motion needs.
⑥	Clockwise Rotation	Tap to rotate other motors clockwise; release to stop.
⑦	Counterclockwise Rotation	Tap to rotate other motors counterclockwise; release to stop.

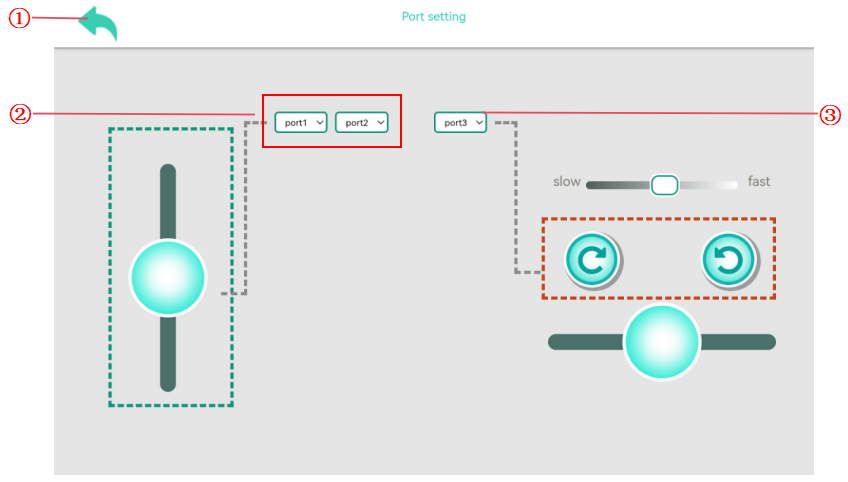

No.	Name	Description
①	Back	Return to the remote control interface.
②	Motor Settings	Adjust ports for controlling robot movement.
③	Other Motors	Adjust ports for other motors.

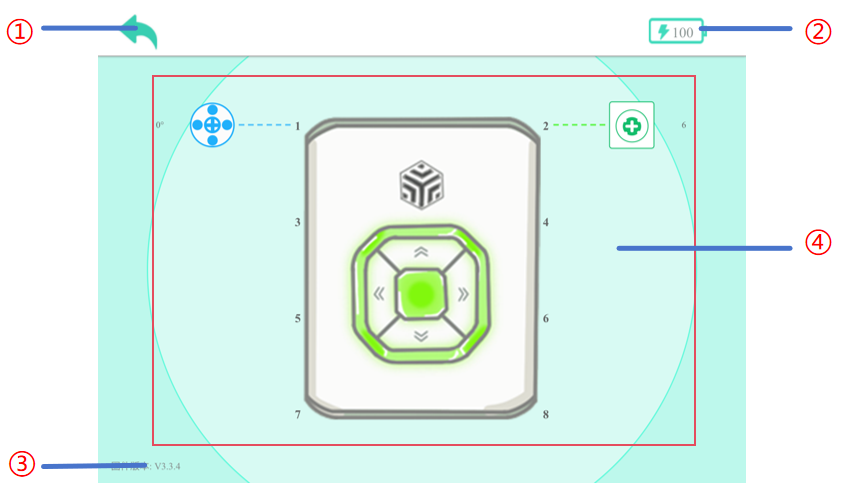

No.	Name	Description
①	Back	Return to the login interface.
②	Power Status	Display the battery status of connected devices (range: 0-100).
③	Firmware Version	View the firmware version of connected devices for update checks.
④	Display Area	Show the status of sensors and actuators, with clickable controls for actuators.

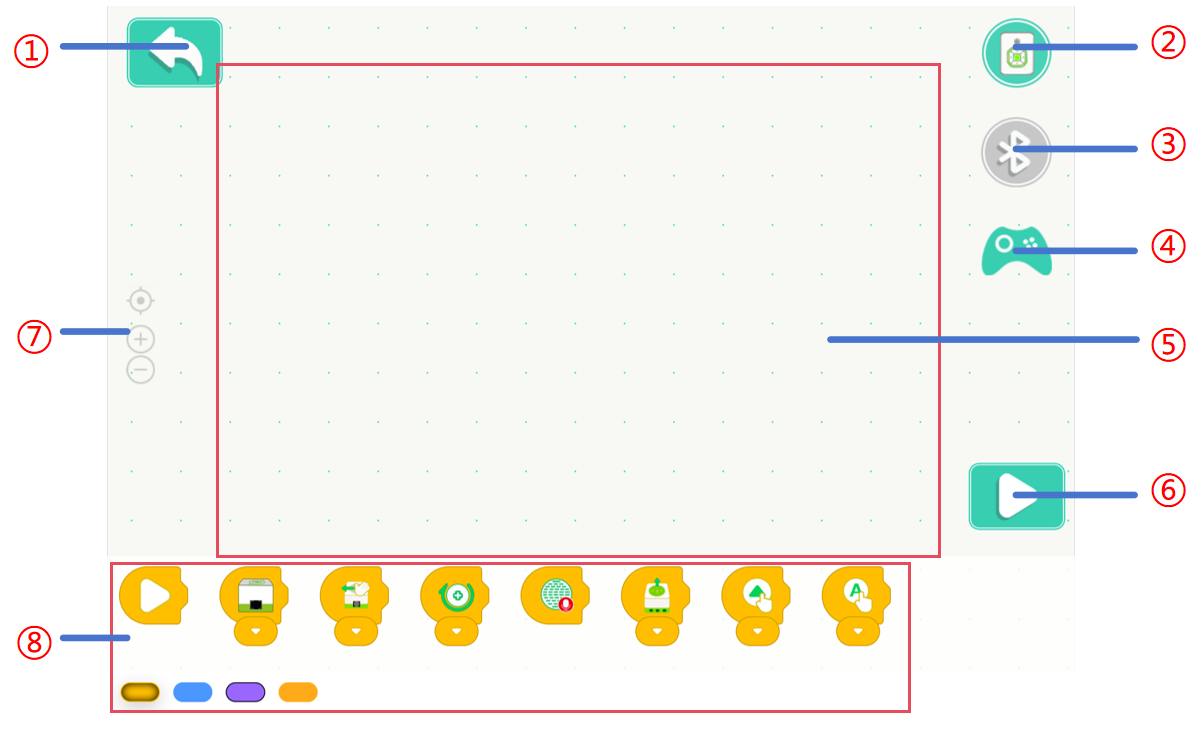

No.	Name	Description
①	Back	Save the current project and return to the login interface.
②	Console	Click the console button to view the port information of the current device for easy debugging; click the button again to retrieve the console.
③	Bluetooth	Open the Bluetooth connection window to pair with a target device.
④	Remote Control	Open the remote control window to assist with programming.
⑤	Programming Area	Drag and drop blocks to create programs.
⑥	Run	Start or stop the program edited in the programming area.
⑦	Zoom Control	Adjust the size of programming blocks for better visibility.
⑧	Block Area	Classified display of various functional blocks, quickly find the required sensors according to the color, convenient and efficient selection and use.

No.	Name	Description
①	Back	Save the current project and return to the login interface.
②	Title	Modify the title of the current project.
③	Save	Save the current project.
④	Download	Download the program to the hub.
⑤	Console	Click the console button to view the port information of the current device for easy debugging; click the button again to retrieve the console.
⑥	Bluetooth	Open the Bluetooth connection window to pair with a target device.
⑦	Remote Control	Click the remote control button, pop up the remote control window, and assist the programming operation
⑧	Programming Area	Write the area of the program, drag and drop the building blocks to the programming area, and complete the program writing.
⑨	Run	Download the program to the hub and start execution; click again to stop the program.
⑩	Block Area	Classified display of various functional blocks, quickly find the required sensors according to the color, convenient and efficient selection and use.
